Iron Breaker AIO (Dual Tank)
Well water

Iron Breaker AIO (Dual Tank)

Our dual-tank well system for iron under 6 ppm. One resin tank, one Katalox Light and catalytic carbon tank, each on its own air-injection valve. Chemical-free.

Regular price$6,146Sale price$3,995

Installed

35% off — ends September 30, 2026

Free reverse osmosis drinking system included

All prices are for a garage or accessible waterline install. Crawl space, attic, outside or trenching installs add a $399 minimum, quoted on-site before any work begins.

Key specs

System
Well water, 2 tanks
Tanks
Two 10" × 54"
Capacity
48,000 grains
Iron
Under 6 ppm
Flow
28 GPM valve · 27 service
Warranty
Lifetime tanks & disc

Direct downloads. No form, no email required.

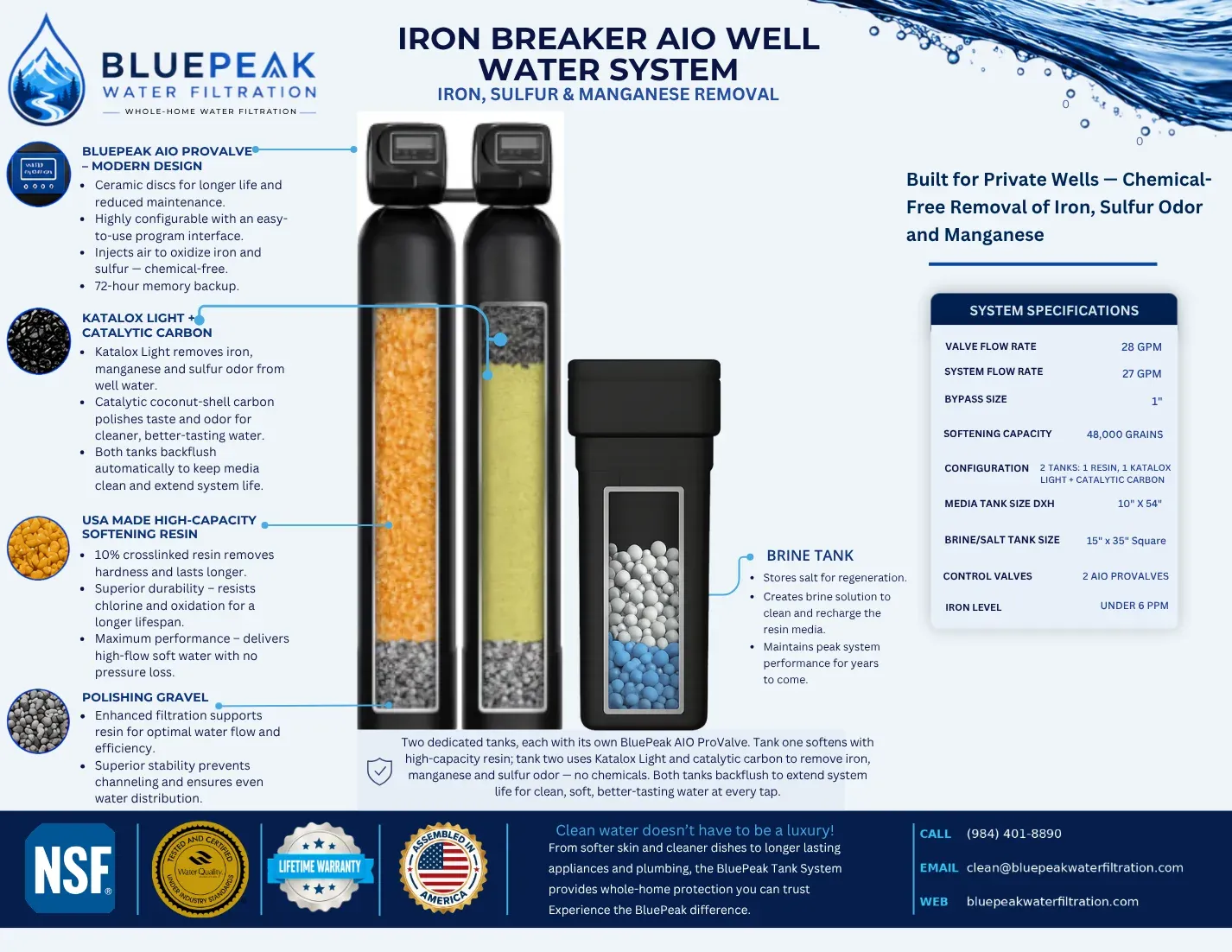

Preview of the Iron Breaker AIO (Dual Tank) brochure

Full specifications

Key specifications

ConfigurationSoftening tank + Katalox Light tank + brine tank
Control valvesTwo BluePeak AIO ProValves, one per tank
TargetsIron, manganese, hydrogen sulfide, hardness
Treatment methodAir-injection oxidation (AIO) — chemical-free
Softening capacity48,000 grains (resin tank)
Media tanks (D × H)10" × 54" each
Iron levelUnder 6 ppm
Valve flow rate28 GPM
Service flow rate27 GPM
Brine / salt tank15" × 35" square
Bypass valve1" full-flow, included
Best suited toHomes on a private well

Operating requirements

Operating pressure30 – 125 PSI
Water temperature40° – 110°F (4° – 43°C)
Electrical120V / 60Hz — 12V 650mA transformer
Inlet turbidityUnder 5 FTU
Service flow27 GPM at 15 PSI pressure drop
Backwash flow3.0 gal/min
RegenerationUpflow counter-current, demand-initiated metering

What this system targets

  • Iron (orange stains)
  • Manganese (dark stains)
  • Sulfur (rotten-egg odor)
  • Hardness (scale)
  • Sediment & turbidity
  • Chlorine, taste & odor

Components and warranty

Control valvesBluePeak AIO ProValve — Hankscraft ceramic disc, air-injection oxidation, assembled in Wisconsin, 72-hour memory backup
Mineral tanksEnpress fiberglass pressure tanks — made in Ohio · NSF-certified polishing gravel support bed
Softening resinResinTech CG10 strong-acid cation, 10% crosslinked — New Jersey, WQA Gold Seal
Filter mediaKatalox Light with Jacobi catalytic coconut-shell carbon
AssemblyAssembled in Texas
CertificationsCertified to NSF/ANSI 42, 44 and 61
WarrantyLifetime — media tanks, brine tank & ceramic disc · 5 years — valve body, board, resin & carbon · 1 year — labor
InstallationIncluded — by a licensed North Carolina plumber
Drinking waterFree reverse osmosis drinking system included, installed at the kitchen sink

Real installs

This system, installed by BluePeak in Triangle homes. Select a photo to enlarge it.

  • BluePeak Iron Breaker AIO well system in Holly Springs: two tanks, each with its own control valve, and a brine tank
    Iron Breaker AIO · Holly Springs

See the full install gallery ›

What it does

Two 10 x 54 inch tanks treat well water in stages. Tank one softens with high-capacity ResinTech CG10 resin, rated at 48,000 grains. Tank two holds Katalox Light with a layer of Jacobi catalytic coconut-shell carbon.

Each tank runs on its own BluePeak AIO ProValve, which draws in air and uses it to oxidize the iron, manganese and sulfur dissolved in the water. Once oxidized they come out of solution, the media traps them and the backwash flushes them away. No chemical feed, and nothing to buy on a schedule beyond softener salt.

Between them the two tanks target the orange iron staining, the dark manganese staining, the rotten-egg smell, the hardness and the sediment.

Who it is for

Private well homes where the water test shows iron under 6 ppm. That covers most wells we see across Wake, Harnett, Chatham and Johnston counties.

Over 6 ppm, air injection cannot keep up and the Peroxide Injection system is the right build instead. Both are dual-tank systems, so the choice between them is about your iron number, not about tank count. Your water test gives us that number.

If your well also tests acidic, pH usually has to be corrected ahead of everything else, which is what the Calcite Neutralizer is for.

Questions about this system

Do you work on well water?

Yes, and it's a meaningful share of what we do. Wells in Wake, Harnett, Chatham and Johnston counties commonly come back with iron, hydrogen sulfide, sediment or low pH. Those need genuinely different equipment than a city water home — which is why we test first instead of quoting off a price list.

Single tank or dual tank — how do I know?

It comes down to how much water you use and what is in it. Our Single Tank puts softening resin and catalytic carbon together in one mixed bed, which suits most city homes with up to three bathrooms, and the Single Tank XL is the same build sized for four or more. A dual tank gives each media its own tank — a softener tank plus a catalytic carbon tank on city water, or on a well, a softener tank plus an iron and sulfur tank. Continuous demand and harder problems push you toward dual. We size it off your test and your household, not your square footage.

How much salt will I use?

For a typical Triangle household on a properly sized softener, figure on a bag every two to three months. It depends on your hardness level and how much water you use. If you’re going through salt much faster than that, something is set wrong.

What maintenance does the system need?

Whole-home tank systems are mostly self-maintaining — the valve regenerates or backwashes on its own, metered by your water use, and the media lasts years (calcite is the exception: it is consumed slowly and topped up). What needs regular attention: salt in the brine tank if you have a softener, sediment pre-filters, UV lamps annually, and RO membranes and filter stages on their cycle.

Read the full Answer Center ›

Start with a free water test.

We test at your kitchen sink and show you the results on the spot. If this is not the right system for your water, we will tell you which one is, or that you do not need one at all.
