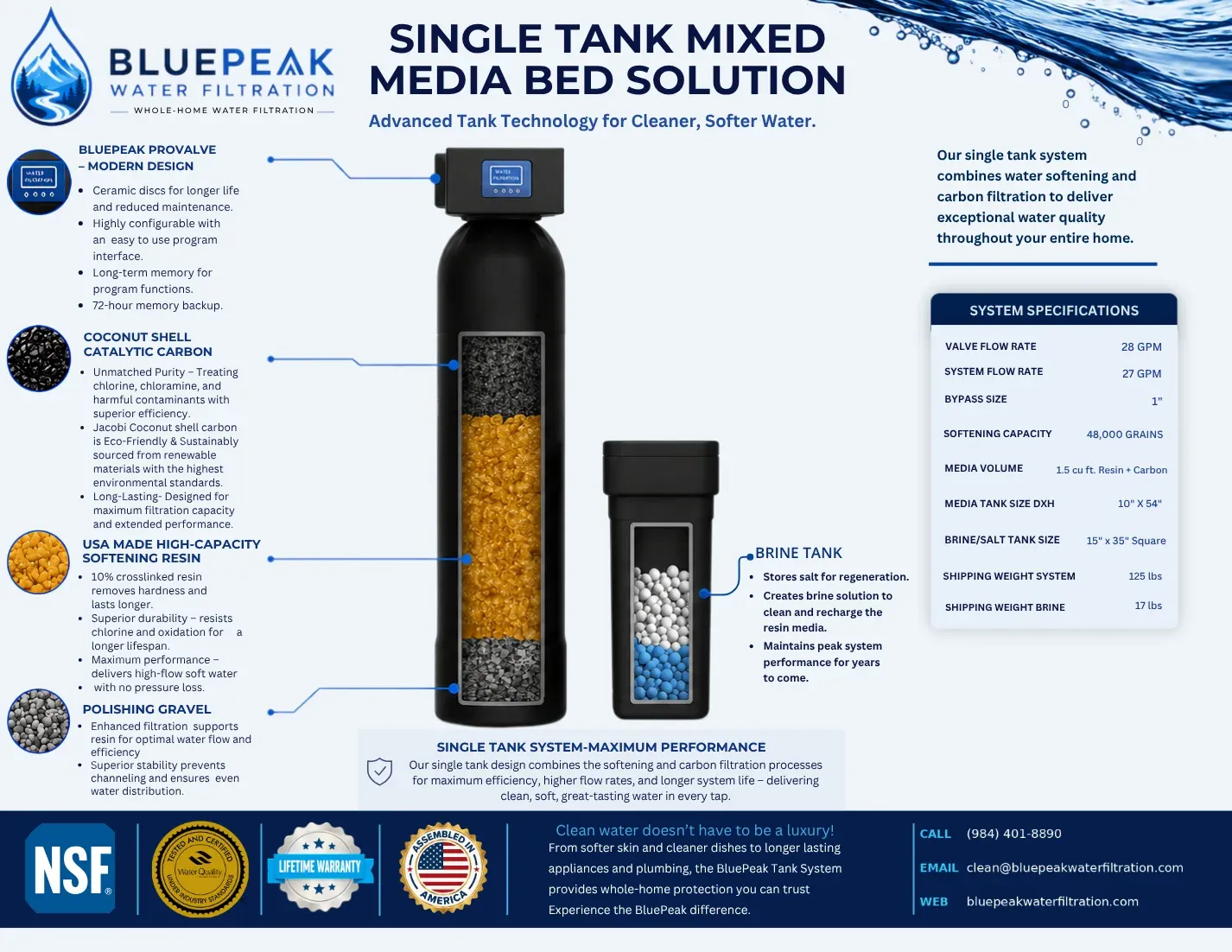

Single Tank (Softener + Catalytic Carbon)
One tank that softens and filters. Softening resin and catalytic carbon share a single mixed bed, so hardness, chlorine and chloramine are handled together in the footprint of one tank. Sized for homes with up to three bathrooms.
Regular price$4,075Sale price$2,649
Installed
35% off — ends September 30, 2026
Free reverse osmosis drinking system included
All prices are for a garage or accessible waterline install. Crawl space, attic, outside or trenching installs add a $399 minimum, quoted on-site before any work begins.
Key specs
- System
- Softener + carbon
- Tank
- 10" × 54" mixed bed
- Capacity
- 48,000 grains
- Flow
- 28 GPM valve · 27 service
- Best for
- City water, up to 3 baths
- Warranty
- Lifetime tank & disc
Full specifications
Key specifications
| Softening capacity | 48,000 grains |
|---|---|
| Valve flow rate | 28 GPM |
| Service flow rate | 27 GPM |
| Media tank (D × H) | 10" × 54" |
| Media volume | 1.5 cu ft resin + carbon |
| Brine / salt tank | 15" × 35" square |
| Connections | 1" NPT elbows · 1.25" distributor tube |
| Bypass valve | 1" full-flow, included |
| Best suited to | Up to 3 bathrooms |
Operating requirements
| Operating pressure | 30 – 125 PSI |
|---|---|
| Water temperature | 40° – 110°F (4° – 43°C) |
| Electrical | 120V / 60Hz — 12V 650mA transformer |
| Inlet turbidity | Under 5 FTU |
| Service flow | 27 GPM at 15 PSI pressure drop |
| Backwash flow | 3.0 gal/min |
| Regeneration | Upflow counter-current, demand-initiated metering |
What the catalytic carbon reduces
- Chlorine and chloramines
- THMs & byproducts
- VOCs
- Pesticides and herbicides
- Hydrogen sulfide odor
- Taste and odor
- Hardness (via resin)
Components and warranty
| Control valve | BluePeak ProValve — Hankscraft ceramic disc, assembled in Wisconsin, 72-hour memory backup |
|---|---|
| Mineral tank | Enpress fiberglass pressure tank — made in Ohio · NSF-certified polishing gravel support bed |
| Softening resin | ResinTech CG10 strong-acid cation, 10% crosslinked — New Jersey, WQA Gold Seal |
| Carbon media | Jacobi AquaSorb CX-MCA catalytic coconut-shell carbon — steam-activated, NSF/ANSI 61 & 42 |
| Carbon grade | Catalytic (chloramine + H₂S); iodine ≥1,000 mg/g; 1,050 m²/g surface area |
| Assembly | Assembled in Texas |
| Certifications | Certified to NSF/ANSI 42, 44 and 61 |
| Warranty | Lifetime — tank, brine tank & ceramic disc · 5 years — valve body, board, resin & carbon · 1 year — labor |
| Installation | Included — by a licensed North Carolina plumber |
| Drinking water | Free reverse osmosis drinking system included, installed at the kitchen sink |
Real installs
This system, installed by BluePeak in Triangle homes. Select a photo to enlarge it.
What it does
Every drop entering the house passes through one 10 x 54 inch tank holding a mixed bed: 1.5 cubic feet of ResinTech CG10 softening resin and Jacobi catalytic coconut-shell carbon, together. The resin takes out the calcium and magnesium behind scale, spotting and soap that will not rinse. The catalytic carbon takes out the chlorine or chloramine your utility adds, along with the taste and the smell that come with it.
Catalytic carbon matters here specifically. Standard carbon handles free chlorine easily. Chloramine, which some utilities use because it lasts longer in the pipes, needs catalytic carbon. The resin is rated at 48,000 grains and recharges itself from the brine tank, and the BluePeak ProValve meters your water so it regenerates on what you actually use rather than on a timer.
Who it is for
City water homes with up to three bathrooms that want both jobs done without giving up the floor space for two tanks. It is the common starting point for a house where the shower smells like a pool and the glasses come out of the dishwasher spotted.
With four or more bathrooms, or eight or more people, the Single Tank XL is the same build with a third more capacity. For a house that never really stops using water, the Dual Tank gives the resin and the carbon a tank each. If you are on a well, this is the wrong category entirely.
Questions about this system
What’s the difference between a water softener and a water filter?
Different jobs. A softener uses resin and salt to remove calcium and magnesium — the minerals that cause scale, spotting and that film on your skin. A filter uses carbon or specialty media to remove chlorine, taste, odor and other contaminants. Softening doesn’t clean your water; filtering doesn’t soften it. Most Triangle city homes need filtering more than softening. Well homes often need both, plus more.
Single tank or dual tank — how do I know?
It comes down to how much water you use and what is in it. Our Single Tank puts softening resin and catalytic carbon together in one mixed bed, which suits most city homes with up to three bathrooms, and the Single Tank XL is the same build sized for four or more. A dual tank gives each media its own tank — a softener tank plus a catalytic carbon tank on city water, or on a well, a softener tank plus an iron and sulfur tank. Continuous demand and harder problems push you toward dual. We size it off your test and your household, not your square footage.
Will this hurt my water pressure?
A properly sized system, no. An undersized one, yes — which is the most common installation mistake in this industry. Our systems are sized on service flow rate against your household’s peak demand. If someone quotes you a system without asking how many bathrooms you have, that’s a red flag.
What maintenance does the system need?
Whole-home tank systems are mostly self-maintaining — the valve regenerates or backwashes on its own, metered by your water use, and the media lasts years (calcite is the exception: it is consumed slowly and topped up). What needs regular attention: salt in the brine tank if you have a softener, sediment pre-filters, UV lamps annually, and RO membranes and filter stages on their cycle.
Start with a free water test.
We test at your kitchen sink and show you the results on the spot. If this is not the right system for your water, we will tell you which one is, or that you do not need one at all.
