Single Tank XL
City water

Single Tank XL

The larger mixed-bed tank, for bigger households: four or more bathrooms, or eight or more residents. Same resin, same catalytic carbon, a third more capacity between regenerations.

Regular price$4,598Sale price$2,989

Installed

35% off — ends September 30, 2026

Free reverse osmosis drinking system included

All prices are for a garage or accessible waterline install. Crawl space, attic, outside or trenching installs add a $399 minimum, quoted on-site before any work begins.

Key specs

System
Softener + carbon
Tank
12" × 52" mixed bed
Capacity
64,000 grains
Flow
28 GPM valve · 27 service
Best for
4+ baths or 8+ residents
Warranty
Lifetime tank & disc

Direct downloads. No form, no email required.

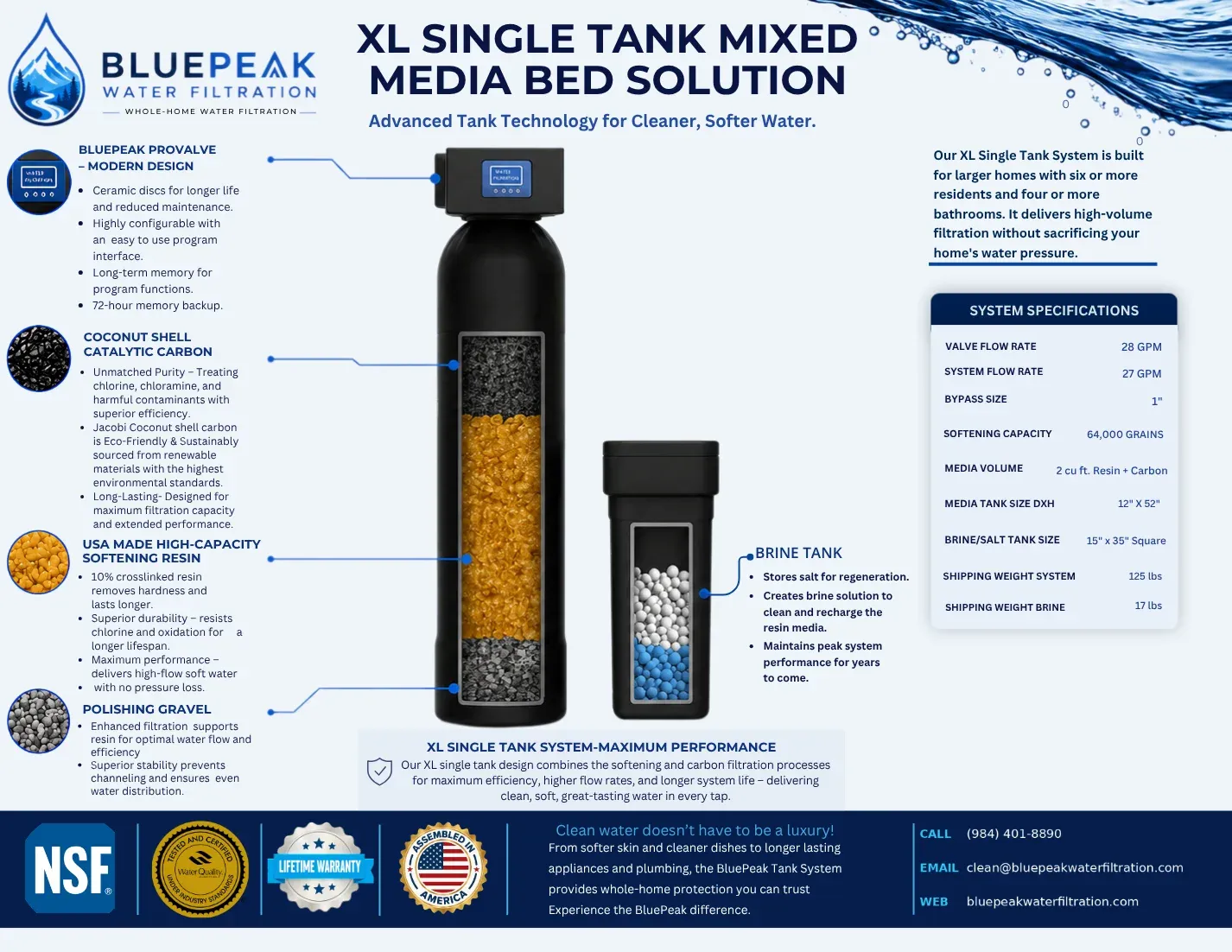

Preview of the Single Tank XL brochure

Full specifications

Key specifications

Softening capacity64,000 grains
Valve flow rate28 GPM
Service flow rate27 GPM
Media tank (D × H)12" × 52"
Media volume2 cu ft resin + carbon
Brine / salt tank15" × 35" square
Connections1" NPT elbows · 1.25" distributor tube
Bypass valve1" full-flow, included
Best suited to4+ bathrooms, or 8+ residents

Operating requirements

Operating pressure30 – 125 PSI
Water temperature40° – 110°F (4° – 43°C)
Electrical120V / 60Hz — 12V 650mA transformer
Inlet turbidityUnder 5 FTU
Service flow27 GPM at 15 PSI pressure drop
Backwash flow3.0 gal/min
RegenerationUpflow counter-current, demand-initiated metering

What the catalytic carbon reduces

  • Chlorine and chloramines
  • THMs & byproducts
  • VOCs
  • Pesticides and herbicides
  • Hydrogen sulfide odor
  • Taste and odor
  • Hardness (via resin)

Components and warranty

Control valveBluePeak ProValve — Hankscraft ceramic disc, assembled in Wisconsin, 72-hour memory backup
Mineral tankEnpress fiberglass pressure tank — made in Ohio · NSF-certified polishing gravel support bed
Softening resinResinTech CG10 strong-acid cation, 10% crosslinked — New Jersey, WQA Gold Seal
Carbon mediaJacobi AquaSorb CX-MCA catalytic coconut-shell carbon — steam-activated, NSF/ANSI 61 & 42
Carbon gradeCatalytic (chloramine + H₂S); iodine ≥1,000 mg/g; 1,050 m²/g surface area
AssemblyAssembled in Texas
CertificationsCertified to NSF/ANSI 42, 44 and 61
WarrantyLifetime — tank, brine tank & ceramic disc · 5 years — valve body, board, resin & carbon · 1 year — labor
InstallationIncluded — by a licensed North Carolina plumber
Drinking waterFree reverse osmosis drinking system included, installed at the kitchen sink

Real installs

This system, installed by BluePeak in Triangle homes. Select a photo to enlarge it.

  • BluePeak Single Tank XL with its brine tank and wall-mounted plumbing loop in a Cary garage
    Single Tank XL · Cary

See the full install gallery ›

What it does

Same job as the standard Single Tank, sized up. A 12 x 52 inch tank holds a 2 cubic foot mixed bed of ResinTech CG10 softening resin and Jacobi catalytic coconut-shell carbon, rated at 64,000 grains. It softens and it filters: hardness, chlorine, chloramine, taste and smell, across the whole house.

The difference is capacity. A bigger bed goes longer between regenerations, which is what a busy household needs. Same BluePeak ProValve, same media and the same certifications as the standard tank. An undersized system is the most common installation mistake in this industry, and this is the tank that avoids it in a large home.

Who it is for

Larger households on city water: four or more bathrooms, or eight or more residents. A standard tank would be working at its limit in a house like that.

Below that, buy the standard Single Tank instead. Same media, same valve, lower price. The XL earns the difference only when the demand is genuinely there. Beyond it, for ten or more residents, a pool or continuous demand, the Dual Tank is the next step.

Questions about this system

What if I have a big household?

Standard tanks get outrun by high-demand households. Our Single Tank XL is built for homes with four or more bathrooms, or eight or more residents: a larger 12 x 52 inch tank rated at 64,000 grains, a third more capacity than the standard Single Tank, so it goes longer between regenerations. For ten or more residents, a pool, or a house that never really stops using water, the Dual Tank is the step beyond that.

Will this hurt my water pressure?

A properly sized system, no. An undersized one, yes — which is the most common installation mistake in this industry. Our systems are sized on service flow rate against your household’s peak demand. If someone quotes you a system without asking how many bathrooms you have, that’s a red flag.

Single tank or dual tank — how do I know?

It comes down to how much water you use and what is in it. Our Single Tank puts softening resin and catalytic carbon together in one mixed bed, which suits most city homes with up to three bathrooms, and the Single Tank XL is the same build sized for four or more. A dual tank gives each media its own tank — a softener tank plus a catalytic carbon tank on city water, or on a well, a softener tank plus an iron and sulfur tank. Continuous demand and harder problems push you toward dual. We size it off your test and your household, not your square footage.

What maintenance does the system need?

Whole-home tank systems are mostly self-maintaining — the valve regenerates or backwashes on its own, metered by your water use, and the media lasts years (calcite is the exception: it is consumed slowly and topped up). What needs regular attention: salt in the brine tank if you have a softener, sediment pre-filters, UV lamps annually, and RO membranes and filter stages on their cycle.

Read the full Answer Center ›

Start with a free water test.

We test at your kitchen sink and show you the results on the spot. If this is not the right system for your water, we will tell you which one is, or that you do not need one at all.
